Product Name:RH-7078H 6-Station Power cord flexing tester

Product category:Plug & Socket Test Equipment

Product Description

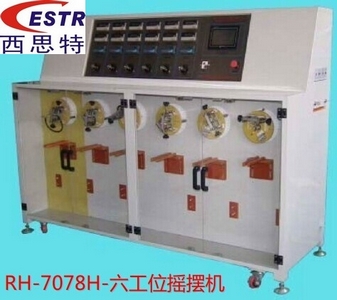

RH-7078H Six-station Power cord flexing tester

Product introduction
Model RH-7078H meets standards of IEC 60884-1 Clause 23, GB 2099.1 Clause 23, VDE 0620-1 Clause 23, DS 60884-2-1D Clause 23,BS 1363-1,-2 Clause 19, IEC 60320-1 Clause 22, GB 17465-1 Clause 22 and UL 817 Clause 96 so on. Use for flexing test of plugs and check the firmness of wire connect to the terminal of power cord,with frequency control of motor speed and adjustable fixture position and preset tesi times, independent test for each station, automatic counting and load current, voltage, and automatic stop function.
Technical parameters:
1. Applicability : Compatible with all standards, non-standard plugs, cable flexing test requirements.
2. PLC control and set the test parameters on the color touch screen.
3. Flexing angle : precision stepper motor control flexing angle : ± 180 ° ( or any angle ) continuous setting, can not be symmetrical on both sides of the angle, accuracy ± 1 °.
4. Test station: Six-station independent test, the flexing angle and center adjustable.
5. Flexing speed:5~60times (360°)/min, frequency control of motor speed.
6. Counts: 1~999999, independent preset and counting;
7. Alarm function : motion detection open circuit with automatic shutdown and alarm function, when a station break wire to stop , without affecting other stations test.
8. Data processing: all of a sudden power outage can keep records of the test, so that when energized again continue to test.
9. Test load: with low voltage and large current (Rated current) load test:
a) Input Power : AC 220V ± 10%, 50Hz/60Hz, 6KVA.
b) Max input current : AC 30A;
c) Output voltage : AC≤6V,±5% of accuracy, six-position independent digital outputs and
manually adjust the voltage value.
d) Output current: AC 0 ~ 20A, ±5% of accuracy, six-position independent digital output and manually adjust the current value , the non-constant current source and at low voltage and current load in the test break wire can automatically stop.
e) Power factor: not adjustable.
f) Pressure drop test: test the terminal to the wire ends of L/N poles on the power cord of the voltage drop test, the test voltage drop overrun can be automatic stop.
g) Min overrun current : ≥0.2A.
Note: This tester can connect the external rated voltage and large current load.
10. Rated voltage and rated current test, and low voltage and large current test each station are free to choose, do not affect each other.
11.Security: high quality electrical components and high sensitivity leakage protection system ensure that no potential danger to the operator.
12. Test Fixture : multifunctional fixture of six sets.
13.Weights : 113g, 500g, 10N, 20N, all six sets ( or as requested ) .
Note: Not including copper electrodes fixture (not not need copper electrode voltage drop test fixture).
