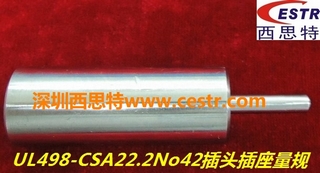

North America UL498-2012/CSA 22.2 No 42 Gauges for plugs and sockets
Warm congratulations UL ( Taiwan ) LAB to CESTR ordered IE 60884-1:2013, VDE 0620-1:2013, EN50075-1990, DS 60884-2-D1:2011, IEC 60320-1:2007, IEC 60320-2-2:1998 standards full set of test instruments and gauges. More: http://www.cestr.com/en/news/show.asp?id=221
Standard: UL498-2012/CSA 22.2 No 42-2010；
Material: Body and pins in made by high-quality and high-strength steel or stainless steel and accessories made of high quality plastic.
Tolerance: according to standards and fig no.
Pack: Packed in soft material and high-quality plastic packaging.
Mark: laser marking specific model and fig no., etc.
No.
|
Fig no.
|
Gauge Describe
|
Q'ty
|
1
|
UL498 Figure 9.1
|
articulate probe with web stop
|
1
|
2
|
UL498 Figure 10.1
|
probe
|
1
|
3
|
UL498 Figure 31.1
|
flat probe
|
1
|
4
|
UL498 Figure 69.1
|
reference plug
|
1
|
5
|
UL498 Figure 94.1
|
impoper insertion test blades
|
2
|
6
|
UL498 Figure 105.1
|
test plug
|
2
|
7
|
UL498 Figure 105.2
|
test blade
|
1
|
8
|
UL498 Figure 118.1
|
receptacle test fixture
|
1
|
9
|
UL498 Figure 118.3
|
push out tool
|
1
|
10
|
UL498 Figure 118.5
|
bridge
|
1
|
11
|
UL498 Figure 119.1
|
test pin A
|
1
|
12
|
UL498 Figure 119.2
|
test pin B
|
1
|
13
|
UL498 Figure 119.3
|
57g ground pin
|
1
|
14
|
UL498 Figure 119.4
|
113g ground pin
|
1
|
15
|
UL498 Figure 129.2
|
No.14 AWG test pin
|
1
|
16
|
UL498 Figure 132.1
|
test probe
|
1
|
17
|
UL498 Figure 132.2
|
test probe
|
1
|
18
|
UL498 Figure 144.2
|
fixture for assembly security test
|
1
|
19
|
UL498 Figure SD13.2
|
over size ground pin
|
1
|
|
