RH - 6033B UL94 horizontal vertical combustion chamber (UL lab recommendation model)

     - printed circuit board burn dedicated test chamber (compatible with all UL94 testing project)

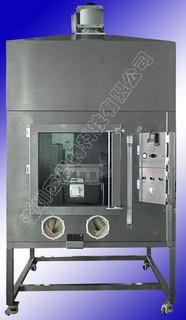

                                          RH - 6033B PCB Flame Test Chamber

Taken the UL approved laboratory recommended the only domestic manufacturer

Taken the CTI China - PCB test UL approved laboratory measurement special models

RH - 6033 B  printed circuit board PCB Flame combustion Chamber Chamber (UL94 Horizontal Vertical combustion Chamber Horizontal And Vertical Flame Chamber) dedicated to the combustion test And evaluation of PCB, according to the United States UL94 standard equipment And appliance parts in plastic material flammability test of relative clauses in the design And manufacturing, plastic parts of equipment And utensils Horizontal, Vertical flammability test. The device USES imported key components, and equipped with gas flowmeter, adjust the flame size, adopts motor driven method, simple and safe operation; With high accuracy, remote control timing, respectively, the advantages of beautiful appearance, all technical indexes reach the UL94 standard. The machine can also be used for other materials burning test.

Product features

1. Excellent design: refer to the world's most famous manufacturers: American Govmark, British FTT, the United States Ametek (former U.S. Atalas), ITW (the former Italy CEAST) in the United States, learn their respective advantages and improve the shortage, this machine also increased more than our innovation alone.

2. Standard compliance: when other factory reference UL94-2010 version, we adopt UL94-2013 version, not only satisfies the requirement of 2010 related and one pace reachs the designated position, follow-up does not need to change and add, more in line with the standard requirements, also save you a lot of cost.

3. High precision meter: currently, each manufacturer USES the flow meter, we adopt world famous brands and recognized by UL experiment to the chamber Alicat display mass flowmeter. Parameter adjustment, readability, convenience and the accuracy of 2% (standard requirement for plus or minus 2%) is much higher than other same type products.

4. High impermeability: specially design and the use of special high sealing material, can smoke in the test, more than by UL laboratory accreditation, UL lab is in the use of our products in Hong Kong, the current domestic manufacturer without the level requirements.

5. Larger combustion space: reference UL lab test for many years experience and senior engineer advice, space more than 4 m3, meet the standard requirements of 0.5 m3 more than 8 times, make the combustion results more accurate.

6. More suitability: universal UL94 burning tester for PCB products have certain limitations, reference UL lab test for many years experience and senior engineer advice, cancelled the clamping the framework of the sample, use special clamping fixture with different thickness, easier to test and ensure accurate operation.

7. Operating convenience: because of the way we structure design and operation not only consider the human body engineering, more focus on facility for testing.

8. Watch convenience: we can watch one side looking glass is installed in the box to the perspective of the human eye observation and negative combustion situation. Also equipped with a handheld remote control device, the combustion and timing is more convenient operation, accurate.

Combustion engine used to import the original device list

1. Tirril buner (Bunsen Burner) producers: HUMBOLDT MFG. CO.

2. The Calibrated Flow meter (meter) producers: Alicat Scientific, Inc.

3. The Extention Thermocouple wire (Thermocouple extension cord) producers: Omega Engineering Limited

Thermocouple Assembly Slug (Thermocouple sensor head) producers: Dwyer Instruments Pty Ltd.

4. Manometer U - tube, 300 mm (differential pressure meter) producers: Dwyer Instruments Pty Ltd.

5. The Temperature controller (Temperature) : manufacturer: FLUKE

Product parameters

1. The device by the control box, burning box, burning , sample clamp, burner igniter, electromagnetic valve, high pressure, flow meter, pressure differential gauge, sensor head and the thermocouple, gas pipe, the pressure-regulating valve, temperature sensing head gear rack and a remote control parts;

2. The test apparatus of burner, flow meter, pressure differential gauge, sensing head and thermocouple using UL94 requirements of foreign original parts;

3. Mode of operation: through the console, set conveniently adjustable parameters, or with a wired handheld remote control device, convenient operation and observation test case;

4. Case handling: housing high seal processing, pore configuration gloves, hands out of touch with the flame and harmful gas, increase for seal; Coating color is black, in the intensity of illumination is not higher than 20 lx;

5. The combustion box specifications: all by imported SUS304 stainless steel, size: W1533 D1496 x x H1914mm volume greater than 4 m3 (UL lab Suggestions);

6. Sealed in the box at the back of the plane mirror installation, help observing test case (new);

7. Exhaust way: at the top of the fan exhaust, sealing plate adopts pneumatic method, opening and closing fast and reliable;

8. A blowtorch size: effective to 100 + 10 mm long, 9.5 + / - 9.5 mm, inner diameter conforms to ASTM D 5025 standard;

9. Equipped with flame height gauge a handheld, burner to temperature of sensing head flame height gauge (10 mm), a cotton tray 1;

10. The flame height adjustment: according to the standard requirement from 20 mm to 175 mm;

11. The temperature measuring system, configuration of temperature measuring thermocouple and two copper temperature measuring sensor head (10 g and 1.76 g);

12. Test support: made of imported SUS316 stainless steel horizontal and vertical burning bracket, conform to the requirements of UL 94 standard. Also can choose: because of some soft circuit board when flame contact deformation, cancel try clamping bracket to hand-held mobile and operating way and the flame of the Bunsen burner (UL lab Suggestions)

13. Fixture: can increase for used in circuit board test fixture (see UL lab)

14. Source: equipped with high purity gas (at least 98% purity);

15. U type differential pressure gauge: range of 1000 mm water column, 2 mm increment, (standard range of 200 mm water column, 5 mm increment);

: 16. Flowmeter conforms to ASTM D 3159 standard, choose the accuracy of 2% digital display mass flowmeter (best choice and UL lab suggested);

17. The time Settings, timer accuracy: 0.1 S

ShiYan time: 0 ~ 99 minutes, 99 seconds can be set

Residual flame time: 0 ~ 99 minutes, 99 seconds can be set

More than burning time: 0 ~ 99 minutes, 99 seconds can be set

Burning Angle: 20 °, 45 °, 90 ° (0 °) is adjustable

18. During the whole test specimen, the equipment and the surrounding air should be in 23.0 2 ℃ temperatures reach thermal equilibrium with each other.

19. There is air conditioning hole

20 gas-electric separation structure, completely eliminate possible explosion hazard

21. The input voltage: AC 220 v + 10% / 5 a / 50 hz.
