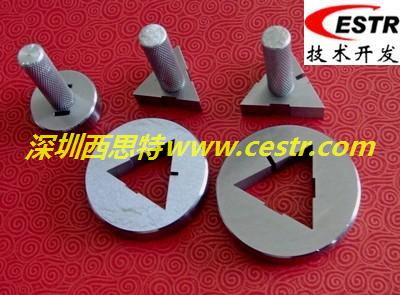

Gauges list of GB 1002-2008

1 Figure 6 (GB1002-2008) 6A.10A single-phase poles plug gauge

2 Figure 7 (GB1002-2008) 6A.10A single poles with grounding plug gauge

3 Figure 7 (GB1002-2008) 16A single-phase poles with grounding plug gauge

4 Figure 8 (GB1002-2008) 10A single-phase poles with grounding plug external gauge

5 Figure 8 (GB1002-2008) 16A single-phase poles with grounding plug external gauge

6 Figure 9 (GB1002-2008) 10A single-phase poles outlet pass regulations

7 Figure 10 (GB1002-2008) 10A single-phase pole sockets minimum pass regulations

8 Figure 11 (GB1002-2008) 10A single-phase pole sockets only regulation

9 Figure 12 (GB1002-2008) 10A single-phase poles socket contact with regulatory

10 Figure 13 (GB1002-2008) 10A single-phase poles with a grounded electrical outlet pass regulations

11 Figure 13 (GB1002-2008) 16A single-phase poles with a grounded electrical outlet pass regulations

12 Figure 14 (GB1002-2008) 10A single-phase poles with a grounded electrical outlet minimum pass regulations

13 Figure 14 (GB1002-2008) 16A single-phase bipolar two grounded outlet minimum pass regulations

14 Figure 15 (GB1002-2008) & 10A single-phase poles with a grounded outlet only regulation

15 Figure 15 (GB1002-2008) & 16A single-phase poles with a grounded outlet only regulation

16 Figure 16 (GB1002-2008) 10A single-phase poles with no contact with regulatory grounded outlet

17 Figure 16 (GB1002-2008) 16A single-phase poles with no contact with regulatory grounded outlet

18 Figure 17 (GB1002-2008) 10A single-phase bipolar pairs with a round plug part through regulation

19 Figure 18 (GB1002-2008) 10A single-phase bipolar pairs with a round plug part of the only regulation

* If you want to get the Gauges list of GB 1003-2008 please contact us.
