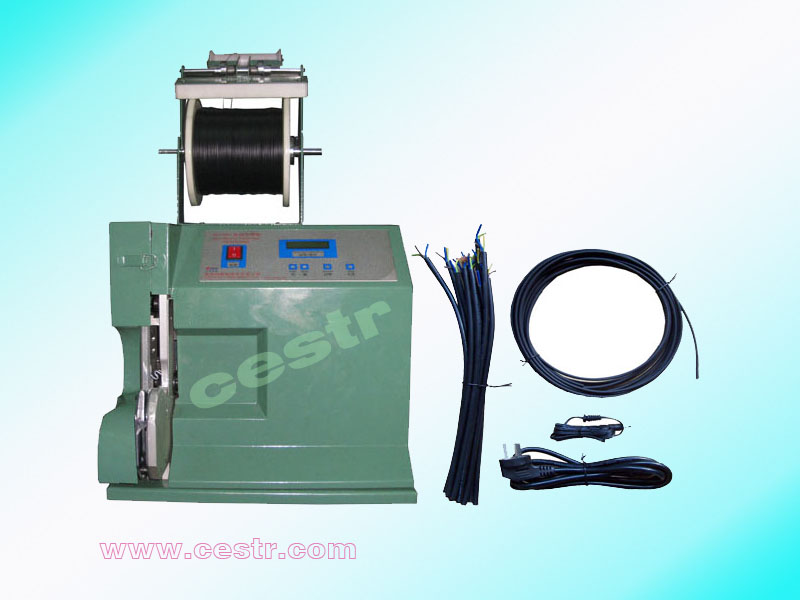

RH-1001 Automatic Twisting Tie Machine
This machine can replace the manual for power cord to twisting Tie. Can improve work efficiency and ensure quality, reducing the damage to the opponent of the manual, with economy, stable and reliable operation and easy repair characteristics.
Technical parameters：
1. Power source：AC220V±10%, 50Hz
2. Power rating：100VA
3. Model of machine：
Model 95, Model 115, Model 135, Model 200.
4. Applicable scope of twisting (After the completion of OD)：
Model 95： About Φ10—Φ 20（mm）
Model 115：About Φ15—Φ 30（mm）
Model 135：About Φ20—Φ 40（mm）
Model 200: About Φ30—Φ 60（mm）
5. Weights: NW. 31 Kgs, GW. 49 Kgs
6. Size: 360*500*800 mm
|
