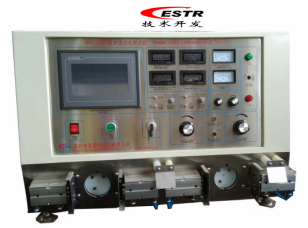

RH-103双头两工位综合测试机(插头电源线综合测试机|插头综合测试机|电源线插头综合测试机|插头电源线综合测试仪|电源线插头综合测试仪|电源线测试仪|插头线测试机|插头测试机|插头电源线测试仪|双头电源线插头综合测试机|电源插头线测试机|单头电源线插头综合测试仪)本机符合IEC/EN60884-1 , 60320-1, 60799 , EN50075, DIN VDE 0620-1, 0625-1, BS 1363-1, 546, 4573, 4491-1, SEV 1011, SEV 6533, 6534, SI 32, CEI 23-50; UL498, UL817, CSA C22.2; GB1002, 2099.1, 17465.1, 15934, JIS C8303, 8306, CNS 10917-2, IS 1293, KS C8305, TIS 166-2549, GOST R51322.1, MS 589, SS145/A, 472, SB107-2-D1 , CS 0017, NBR 14136, 6147, AS/NZS 3112, 3109.1, IRAM 2063, 2073, SABS 164-1, 60799等标准要求。适用于单头、双头(多头)、两芯、三芯插头电源线测试(也可依客户要求设计多芯测试机)。内置耐压机,内外高压分别独立可调,主控电路采用进口微电脑PLC可编程逻辑控制系统。可进行导通、极性、长度、绝缘电阻、极间高压、极外高压等项目测试。合格品由顶针顶出且在插头上打上测试合格标记(如需要“T”标记,订购需说明)防止漏检或混入不合格品;不合格品有声光报警且不能顶出,还可选装不合格品自动剪切刀<订购需说明>。随着技术升级创新,多个型号产品实现人机对话触摸屏微电脑控制,内嵌不同测试模式及参数,只有权限人员才能更改参数,测试更方便、安全可靠。
本着安全、可靠、稳定、效率、创新的开发和制造理念,本司产品外观美观,布局合理,中英文对照操作方便,核心部件全系进口(PLC可编程逻辑控制器,、接触器Contactor、继电器Relay、气缸Cylinder,人机对话Man-machine conversation等),其它部件采用国内外大厂,同时积极参考电业公司的意见,设计更人性化和实用方便。
插头综合测试机是本司核心产品,是被全球知名公司(如HP,Dell, Sony等)认可的四家专业厂家之一,且是中国唯一一家。也是国内唯一完全能被镒胜(I-Sheng)、良维(Longwell)、怡富万(Linetek)、豪利士(Volex)、领亚(Linoya)、正威(Awin)、周氏(Chau's)、博硕(ASAP)、富士康(Foxconn)等知名电业公司认可的专业厂家,更是众多电业公司首选和认证机构(UL,VDE, CCC, BSI等)推荐的专业厂家。
请点击以下文字即可打开各型号测试机信息:
RH-101电源线综合测试机(用于单头测试)
RH-102B 30工位综合测试机(双头30工位)
RH-102C 30工位触摸式人机界面综合测试机(由其它型号代替)
RH-102D 30工位触摸式人机界面综合测试机(双头30工位)
RH-103D 双头单工位综合测试机(用于双头测试)
RH-104双头单工位综合测试机(用于双头测试,ASAT/BSI专用)
RH-105 30工位综合测试机(双头30工位,ASAT/BSI专用)
RH-108D 30工位综合测试机(双头30工位)
RH-109 单头单工位综合测试机(用于单头测试)
功能及特点Function & Characteristics
|
检测项目
Test item
|
可测试单、双头2,3芯产品极性、导通、绝缘、外被耐压、极间耐压, 具有逐步检测,不良品锁模报警功能。
This tester is suitable for electrical performance test items of cord sets and power cord with or without connector (2-core or 3-core cable or multicore), such as Polarity, Continuity, Insulating Resistance, Interpolar Hi-pot, Skin Hi-pot, etc.
* If be the multicore cable when ordering please indicate.
|
测试模式
Test mode
|
1) 单头两芯无极性2C/P Nonpolarity No Touch End---2-cores non-polarity of single-plug no touch ends of test modes (Quick test).
2) 单头两芯点测无极性2C/P Nonpolarity Touch End---2-cores non-polarity of single-plug touch ends of test modes.
3) 单头两芯有极性2C/P Polarity Touch End---2-cores polarity of single-plug touch ends of test modes.
4) 单头三芯无极性3C/P Nonpolarity Touch End---3-cores non-polarity of single-plug touch ends of test modes.
5) 单头三芯有极性3C/P Polarity Touch End---3-cores polarity of single-plug touch ends of test modes.
6) 双头两芯无极性2C/P+C Nonpolarity---2-cores non-polarity of plug with connector of test modes.
7) 双头两芯正极性2C/P+C Straight Polarity---2-cores straight polarity of plug with connector of test modes.
8) 双头两芯反极性2C/P+C Reverse Polarity---2-cores reverse polarity of plug with connector of test modes.
9) 双头三芯正极性3C/P+C Straight Polarity---3-cores straight polarity of plug with connector of test modes.
10) 双头三芯反极性3C/P+C Reverse Polarity---3-cores reverse polarity of plug with connector of test modes.
|
绝缘电压DC voltage
|
DC500V
|
绝缘电阻Insulation resistance
|
5MΩ, 100MΩ具有超限报警功能Have overload alarm function.
|
漏电流设定(mA)
Leakage current
|
0~20mA连续可调,数字显示,精度±5%,特殊电路设计,最大限度减少机器内部泄漏,提高测试精度。0~10mA Continuously adjustable, digital display, accuracy ±5%, The special circuit design to minimize the machine internal leakage and improve test accuracy.
|
极间高压
Interpolar Hi-pot
|
0~5.0KVAC,数字显示,精度±5%, 超高压设置。
0~5.0KVAC, Digital display, accuracy ±5%, Ultrahigh Hi-Pot settings (Exposed copper test is more reliable).
|
外被高压Skin Hi-pot
|
0~6.0KVAC,数字显示,精度±5%, 超高压设置(露铜测试更加可靠)。
0~6.0KVAC, Digital display, accuracy ±5%, Ultrahigh Hi-Pot settings (Exposed copper test is more reliable).
|
耐压测试时间
Hi-pot test time
|
0~1000.0S
|
控制方式
Control mode
|
微电脑(PLC)+彩色触摸屏设置(英文显示)。
PLC+ Color Touch-Screen (display in English).
|
测试工位
Testing Station
|
测试插座用于插头和插座 :各1个测试插座;
依产品类型模块化设计方便更换, 所有测试插座均为特殊设计,耐磨损,使用寿命长。
The test socket for plugs and sockets (connector): Each a station.
According to product type’s modular design convenient change, all test sockets for special design, wear-resistant and long service life.
|
不良品处理
Cutting knife
|
气动型不良品自动剪切装置, 选装。
Pneumatic-mode of defective products automatic cutting device, optional.
|
测试参数锁定
Test parameter lock-up
|
密码锁定 Password Lock.
|
其它功能
Other function
|
有不良发生点智能提示功能;测试电路抗干扰能力强,测试更加可靠。
Have bad occurred point’s intelligent prompt functions.
Strong anti-jamming ability test circuits, test more reliable.
|
电源电压Power voltage
|
220VAC±5%/50HZ/5A
|
气源气压Air pressure
|
约4kgf/cm3,气源稳定无杂质,整机出厂不带空压装置。About 4kgf/cm3
|
仪器尺寸
Dimensions of Machine
|
L850 * W560 * H570mm.
|
包装箱尺寸
Size of Packing box
|
约/About: L110cm * W90cm * H90cm.
|
重量Weights
|
毛重/G. W. =110Kgs
|
|
